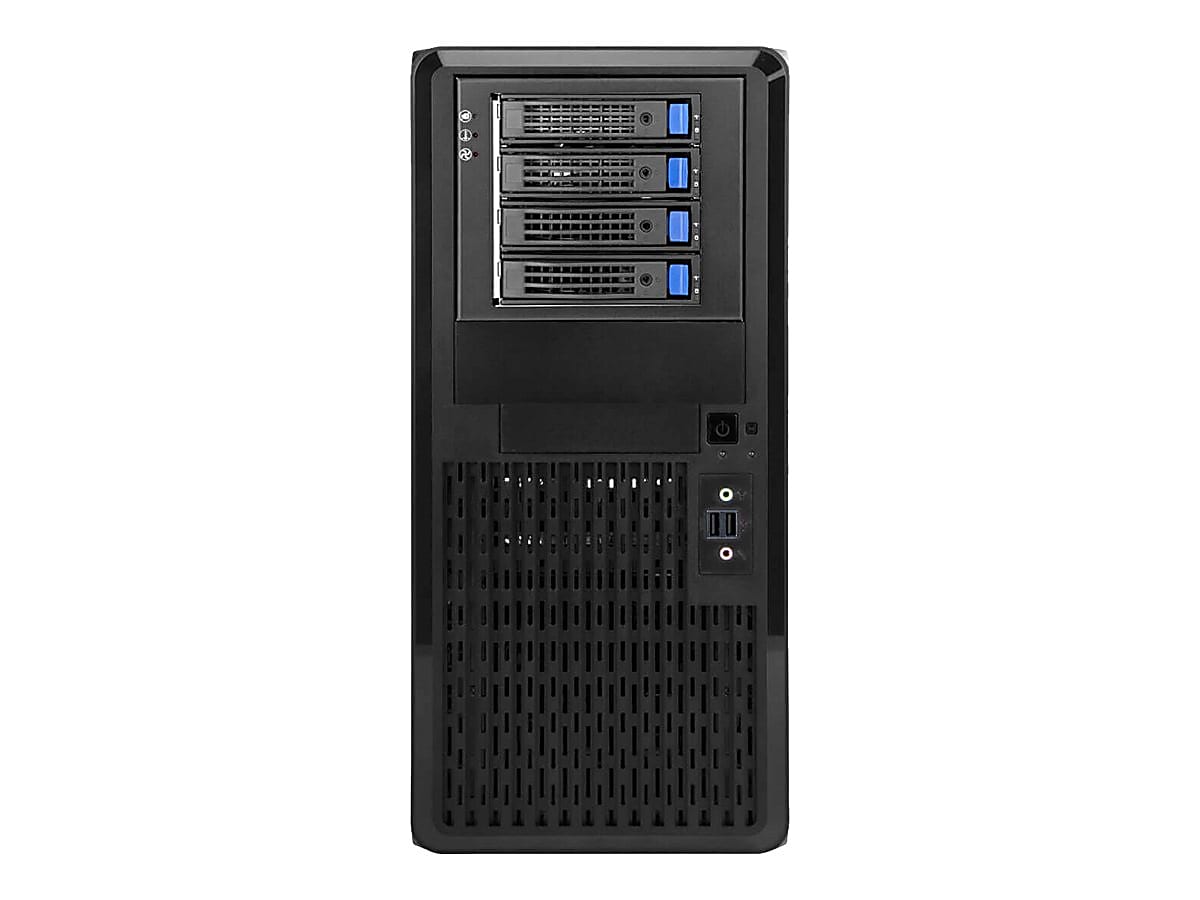

In Win Pedestal Entry Server Chassis – Pedestal – Black – SECC, Galvanized Cold Rolled Steel (SGCC) – ATX, SSI CEB Motherboard Supported – 1 x Fan(s) Supported – 4 x External 5.25" Bay – 1 x External 3.5" Bay – 5 x Internal 2.5" Bay

$101.99

In Stock (10 items left)

Robust pedestal server chassis supporting ATX and SSI CEB motherboards, multiple hot-swap drive bays, anti-vibration HDD holders, flexible cooling options, and tool-free installation.

Description

The In Win Pedestal Entry Server Chassis is a versatile and robust case designed for office workstations and entry-level servers. Constructed from SECC and galvanized cold rolled steel, it supports ATX and SSI CEB motherboards, ensuring compatibility with a wide range of systems including Intel Xeon Scalable processors. The chassis features flexible 5.25″ ODD cage configurations with optional storage kits, anti-vibration HDD holders, and high-density hot-swap drive bays accommodating up to 11 2.5″ or 3.5″ drives. It supports effective cooling with options for 120mm or 92mm front fans and a 120mm rear fan. Tool-free design elements allow for easy installation and maintenance, while rack installation is supported via slide rails. This case is ideal for those seeking expandable storage, efficient cooling, and ease of use in a professional environment.

Additional information

Color

Black

Supported Motherboards

ATX, SSI CEB

Drive Bays

1, 11, 4, 5

Material

Steel

Form Factor

Tower

Motherboard Support

ATX, SSI CEB

Cooling

120mm fan

Fan Support

1 x 3.15 inch fan installed, supports 1 fan

PSU Type

Standard ATX power supply (up to 160 mm length)

External Drive Bays

4 x 5.25", 1 x 3.5"

Rack Mount

Supported (slide rails)

Internal Drive Bays

5 x 2.5" (hot-swap), supports up to 11 total 2.5"/3.5" hot-swap bays

Tool-Free Access

Front panel, HDD, ODD, Rear I/O slots, Side cover

PSU Compatibility

Standard ATX PSU

Tool-Free Design

1

Rack Installation

Supported via slide rails

Anti-Vibration

HDD holder included

Storage Kit Compatibility

SK23 x 2 sets, SK34 x 1 set

SATA Port Module

Supports single easy-swap SATA port module for 2.5"/3.5" HDD x 5 (optional)

Intel Xeon Compatibility

Compliant with Intel Xeon Scalable family
